  • GSI Equipment Pads



    Our equipment pads are engineered to be lightweight and more durable than anything the industry is offering. Contractors across the country know that these pads are a must have for any unit.



    You will discover for yourself that it is durable, sturdy, and reasonably priced. It may just be the last equipment pad you will ever choose.

    We are so confident in our quality that we give our pads a LIFETIME WARRANTY, it will perform as promised and we will stand behind it!

    Contact Us!

  • Visit GSI's HVACR Website goldstonehvacr.com for world class OEM & Wholesale Supplies.

    hvac Pad

  • Light Weight - 1/3 the weight - 3 times the strength

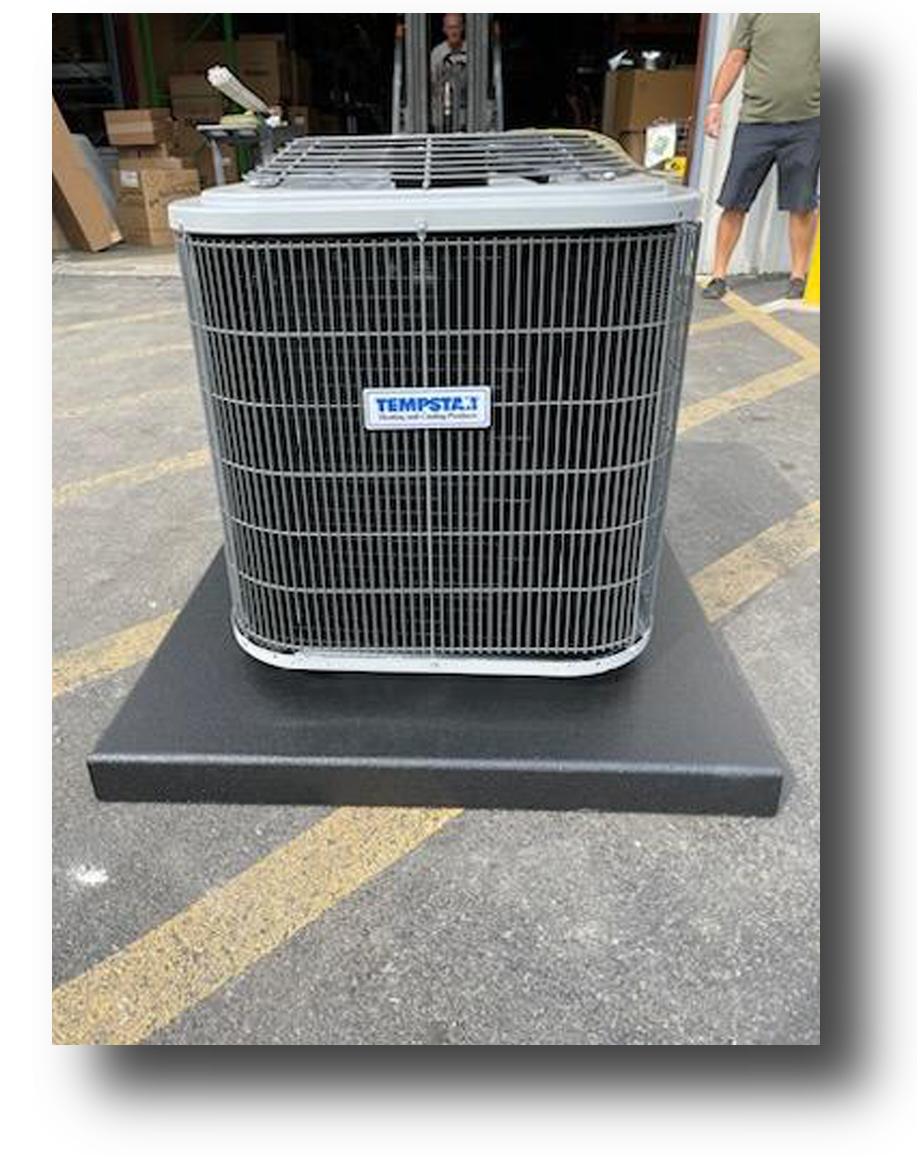

    Light weight, easy to install, looks great and has held up to 7,000 lbs! The pad shown here is our 32x32x3 pad and only weighs 8.5 pounds.

    • Light Weight
    • Video Thumbnail
    • 7000 lbs
    • compare
    • compare

  • Seeing is believing

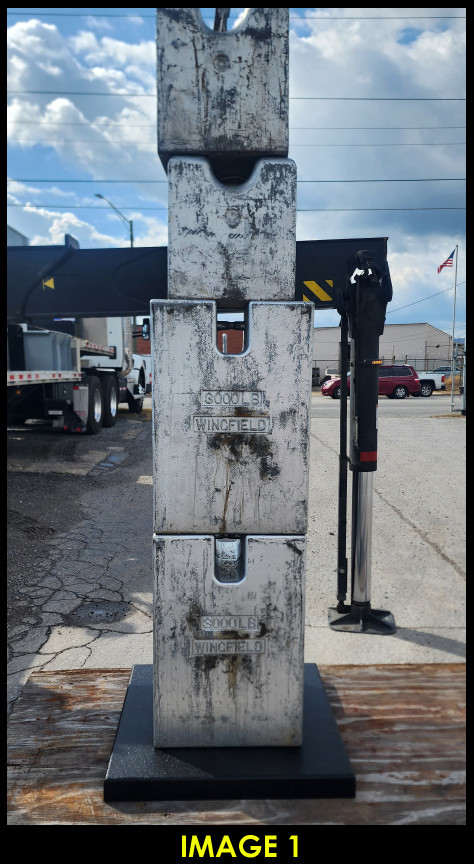

    Image 1. Yes, that's 7,000 lbs!

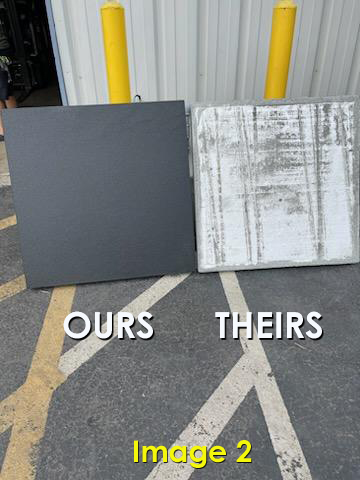

    Image 2. There's no comparison.

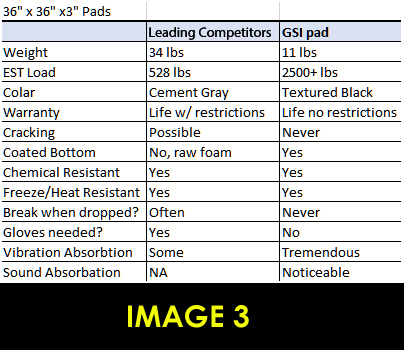

    Image 3. Compare! Other Brands simply don't compare!

Data Sheets

P/N

GSI18383
GSI24243
GSI24363
GSI24483
GSI28423
GSI30303
GSI30363
GSI30483
GSI32323
GSI36363
GSI36423
GSI36483
GSI36543
GSI40403
GSI48483
GSI45503
GSI50603
 		Description

AC Pads 18x38x3
AC Pads 24x24x3
AC Pads 24x36x3
AC Pads 24x48x3
AC Pads 28x42x3
AC Pads 30x30x3
AC Pads 30x36x3
AC Pads 30x48x3
AC Pads 32x32x3
AC Pads 36x36x3
AC Pads 36x42x3
AC Pads 36x48x3
AC Pads 36x54x3
AC Pads 40x40x3
AC Pads 48x48x3
AC Pads 45x50x3
AC Pads 50x60x3
 		Weight

6.00 LBS
5.00 LBS
7.50 LBS
9.50 LBS
10.0 LBS
7.50 LBS
9.00 LBS
12.0 LBS
8.50 LBS
11.0 LBS
12.5 LBS
14.5 LBS
16.0 LBS
13.0 LBS
19.5 LBS
19.5 LBS
25.4 LBS


POLYUREA COATING CHEMICAL TECHNICAL DATA

Mix Ratio by Volume: 1A:1B
Pot Life at 150°F: 2-4 sec
Tack Free Time (at 150 mils): 10-30 seconds
Recoat Time: 0-12 hours
Viscosity "A" side: 120 ± 20 cps
Viscosity "B" side: 190 ± 20 cps
Density (A & B side): 9.17 lbs./gal


Test Name

Hardness
Tensile
Elongation
Tear 		Test Method

63 ± 5 Shore D
3200 ± 300 psi
200 ± 20%
400 ± 40 pli 		Value

ASTM D-2240
ASTM D-412
ASTM D-412
ASTM D-624


Pad Observations

Water absorption: 0%
UV breakdown for black: N/A
Freeze thaw stability: Excellent
Temp working range: -50f - 225f
Shelf life: Indefinite
Service life: Indefinite

Pad Observations CLOSED CELL XPS HIGH DENSITY CORE

Heat range: -50f - 180f
Chemical resistance: Excellent
Density: >2.5 lb/ft3 ASTM D 1622
Internal thermal resistance (R-value @ 1"): 6.7 Btu.in/ft2.h.f ASTM C 518
Compressive strength without the polyurea coating: 40-50 psi ASTM D 1621
Compressive strength with Polyurea coating: > 149 psi
Dimensional stability % volume change in 14 days: 0% ASTM D 2126
Moisture absorption without polyurea coating: 1.77% ASTM C 2842
Internal moisture 158f and 75% relative humidity: 0.5 - 1% ASTM D 2126
Flexural strength without polyurea coating: 60.6 psi ASTM C 203
Modulus of Elasticity: 1,222 psi ASTM C 203
